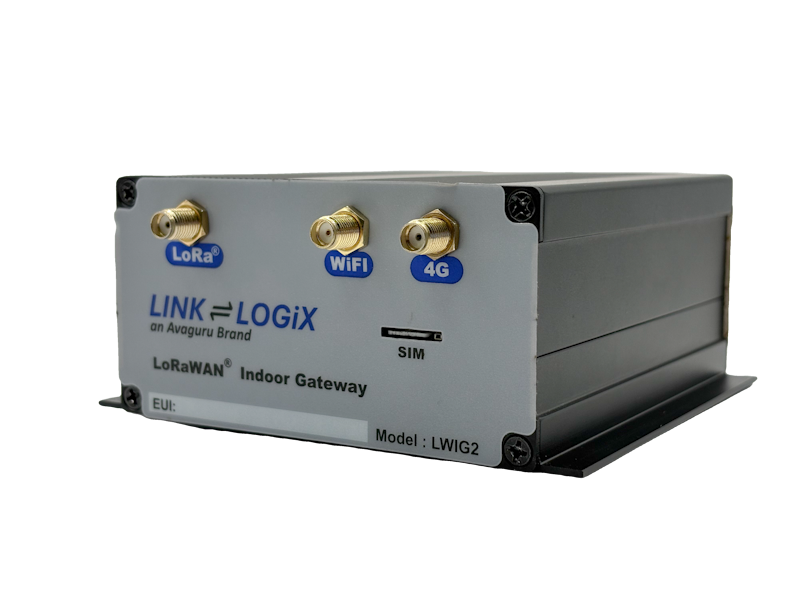

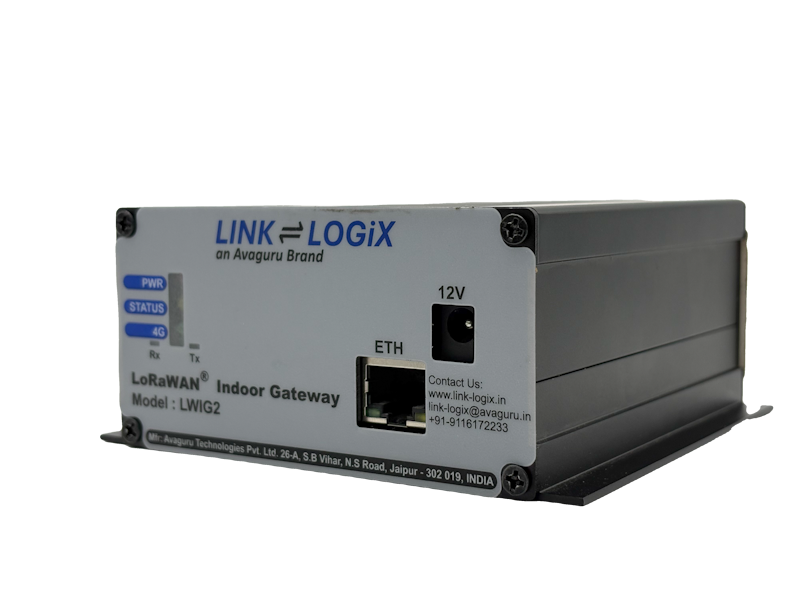

LWIG2-V1

Indoor 8-Channel LoRaWAN Gateway

• Compact and Lightweight, 113x106x50mm
• Low-Cost with superior RF performance
• Supports more than thousand LoRaWAN Nodes
• Latest Semtech SX1302 Baseband Wireless Chipset
• Semtech SX1250 RF Front End along with High Power PA and LNA
• Made In India with Full Local Support
• Comes with Inbuilt LoRa Network Server for small Private LoRaWAN Network

Key Specs

• Up to +27 dBm RF Power, typical +26.8 dBm
• Supports 8 Channels with Spread Factor SF5 – SF12
• Ready Support for EU868, IN865. US915, AU915 & AS923 optional
• Quad Core Cortex-A72 64-Bit with Clock Frequency up-to 1.8Ghz
• Receive Sensitivity Down up to -141 dBm on SF12 & 125KHz
• Back-haul Connectivity on Ethernet, 4G & WiFi with Auto Failover
• Supports MQTT, TCP/IP and several other data transfer options
