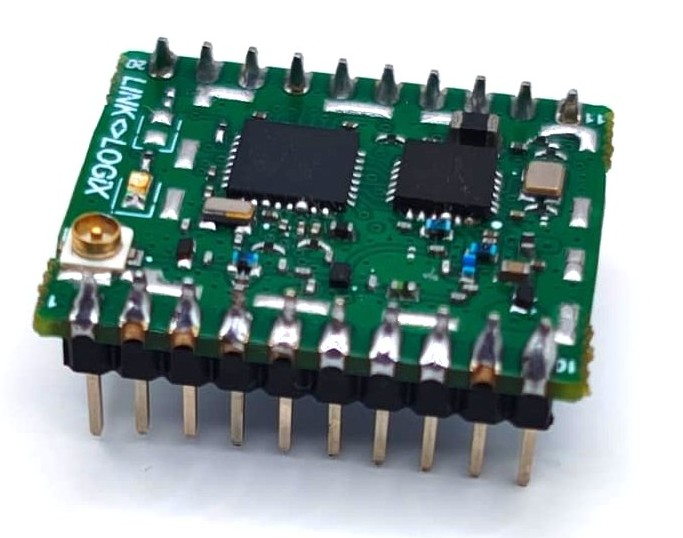

LWM2-62

Low Power Long Range LoRaWAN Module

• Compact and Lightweight
• Low-Cost with superior performance
• Compact Size 22x19mm
• Semtech SX1262 Transceiver
• STM32L0 Series Ultra Low Power MCU
• Long Range Ultra Low Power

Key Specs

• Up to +22 dBm RF Power, typical +21.5 dBm
• Secure Communication with AES-128 Encryption
• Ready Support for EU868, IN865. US915, AU915 & AS923 optional
• Available in 2mm Pitch Stamp Holes as well as Header Pins
• LoRaWAN and LoRa Peer to Peer support
• 11 GPIO Pins, up-to 2 I2C, 4 UART, 4 ADC
